Name:600mm air cooled hot press
Power:3.2KW
Size:600x130mm(24
Voltage:110/220/380V
Weight:50KG

Product Description

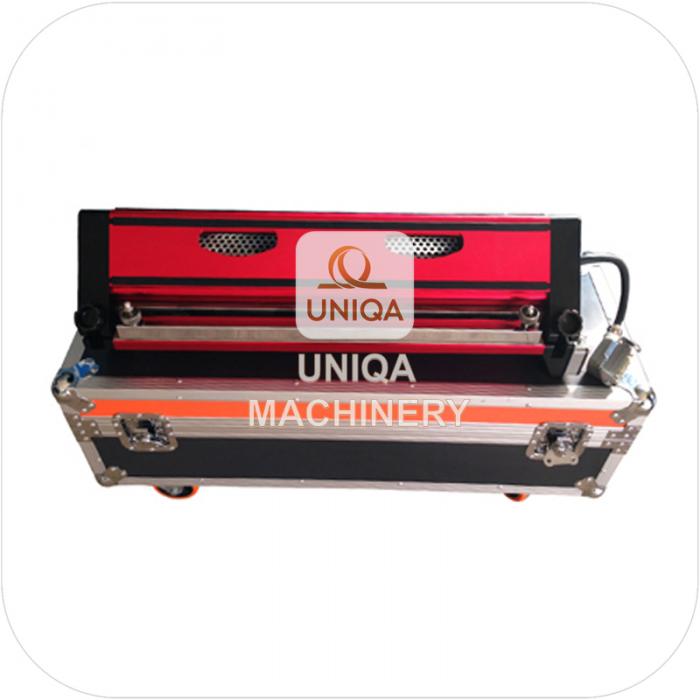

I. Unique air cooled press machine

Air cooled all-in-one designed splicer is the new generation of splice equipment for belt

joint splicing both on site and in the workshop.Unique air cool splicing press is less weight,

less set-up time, and very short splicing time.


II. Standrad joint size:


300*130mm,600*130mm,900*130mm,1200*130mm, 1500*130mm,1800*130mm,2100*130mm,etc.


III. Machine features


01. Integrated type cooling system, no need cooling water.

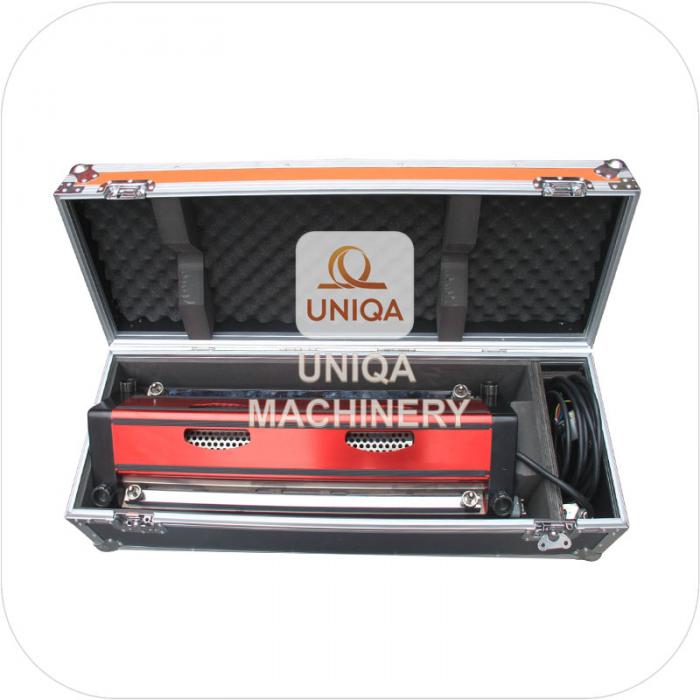

02. Easy to move in luggage box. suitable for belts joint at site.

03. Fast welding and cooling: whole working process within 7-15mins.

04. One-piece equipment, no external component. Easy to installation and operation.


IV. Technical Parameter


01. Model : UQ-A600

02. Power: 3.2KW

03. Voltage: 110/220/380/440/

04. Effective Joint size: 600*130 (24"*5.1")

05. Machine dimension: L805*W250*H220mm

06. Net weight:50KG

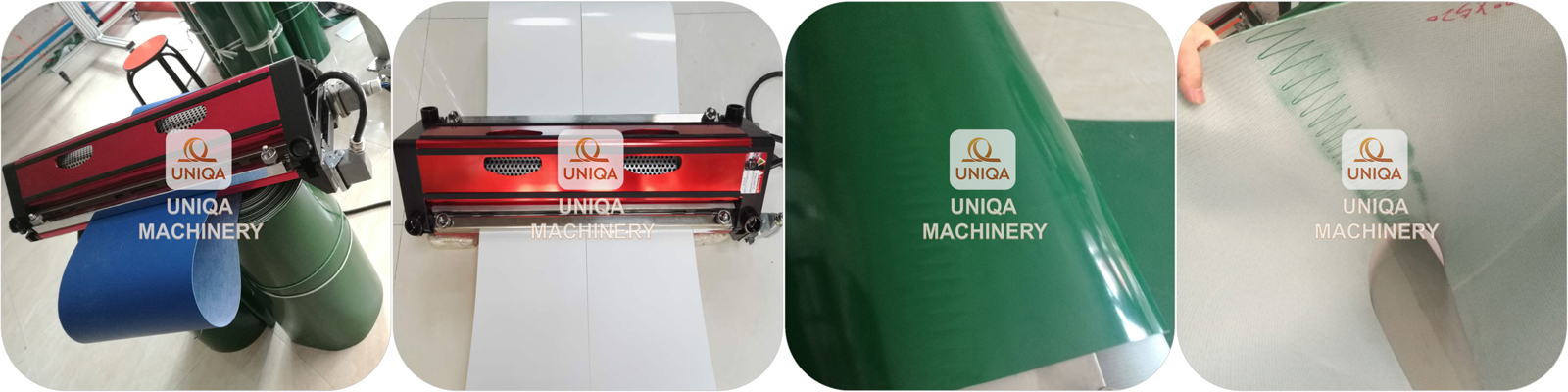

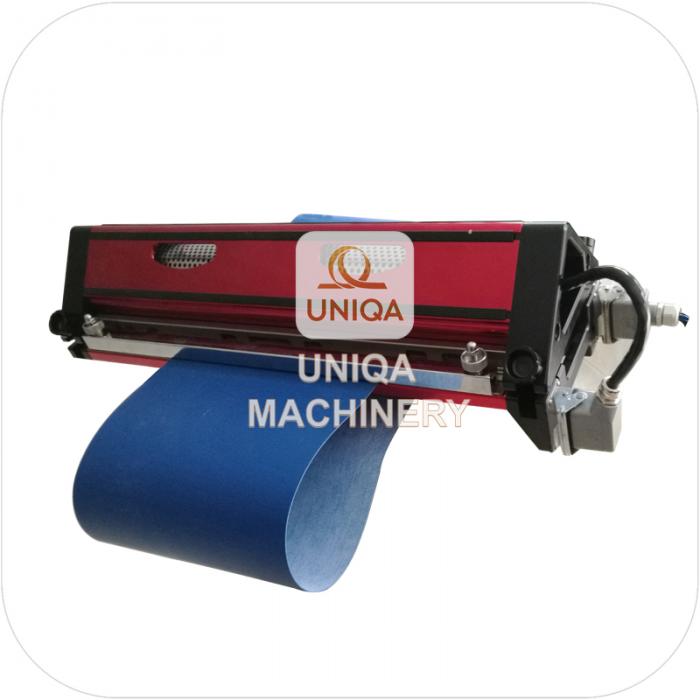

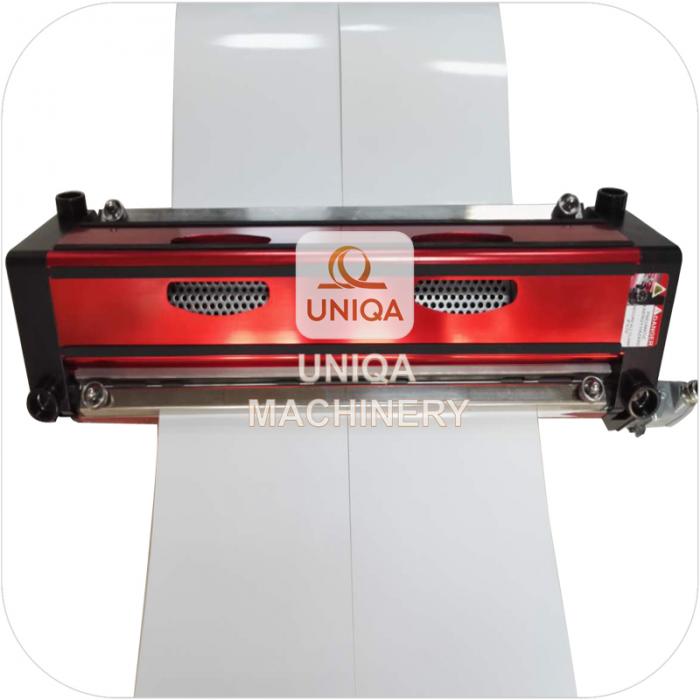

V. Machine photos and joint samples
